Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

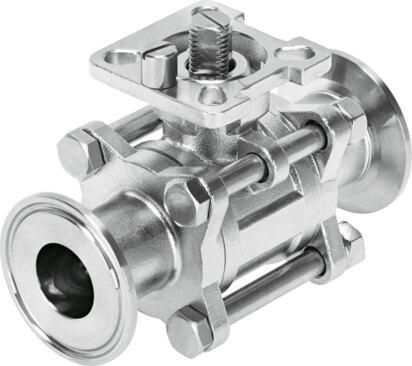

Reference imageConfirm configuration by manufacturer part number.
Festo
4795673
Ball valve VZBD-4-S1-16-T-2-F1012-V14V14
Engineered with a soft sealing principle and a 97.5 mm inside diameter, this Festo 4795673 mechanical 2-way ball valve features a nominal width DN of 100, a nominal pressure PN of 16, and an F1012 flange hole pattern based on ISO 5211. The unit supports a reversible flow direction with a Kv flow rate of 1641 m³/h, handling media temperatures ranging from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids. Featuring ASME BPE-based clamp fitting connections for in-line installation in any mounting position, this RoHS compliant and VDMA24364 Zone III conformant component requires a breakaway torque of 170 Nm at nominal pressure PN. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4795673
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4795673.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Based on Clamp ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F1012
- Inside diameter
- 97.5 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 170 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 1641 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4795673. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
