Festo
4802244

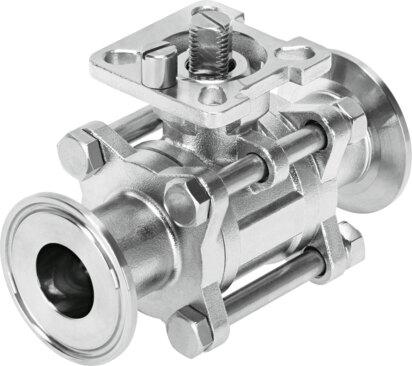

Ball valve VZBD-1/2-S5-16-T-2-F0304-V14V14
The Festo 4802244 is a mechanical 2-way soft-sealing ball valve featuring an 18.1 mm inside diameter, a nominal width DN of 15, and a nominal pressure PN of 16. Built on DIN 32676 and ISO 5211 norms, this 2/2 valve utilizes in-line clamp mounting according to DIN 32676 series A, an F0304 flange hole pattern, and a reversible flow direction with a 46 m³/h flow rate Kv. It operates with vapor, compressed air, inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C while requiring a 7 Nm breakaway torque at nominal pressure. This RoHS-compliant component features a switching position indication determined by slot direction matching flow direction and adheres to VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4802244
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4802244.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Clamp according to DIN 32676 series A
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0304
- Inside diameter
- 18.1 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 7 Nm
- Based on norm
- DIN 32676 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 46 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4802244. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
