Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4802245

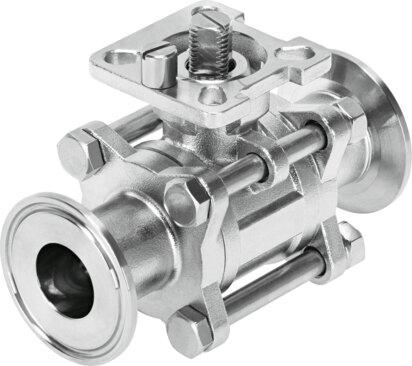

Ball valve VZBD-3/4-S5-16-T-2-F0304-V14V14
This Festo 4802245 industrial component is a mechanical 2-way ball valve featuring a soft sealing principle and a nominal width DN of 20 with an inside diameter of 23.7 mm. Designed for in-line installation in any mounting position, it accommodates vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C. The unit incorporates a clamp fitting connection according to DIN 32676 series A, a nominal pressure PN of 16, a flow rate Kv of 82 m³/h, and a breakaway torque of 9 Nm at nominal pressure based on DIN 32676 and ISO 5211 norms. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4802245
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4802245.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Clamp according to DIN 32676 series A
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0304
- Inside diameter
- 23.7 mm
- Nominal width DN
- 20
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9 Nm
- Based on norm
- DIN 32676 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 82 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4802245. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
