Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

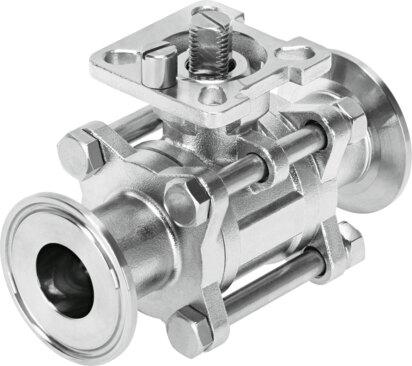

Reference imageConfirm configuration by manufacturer part number.
Festo
4802248
Ball valve VZBD-11/2-S5-16-T-2-F0507-V14V14
The Festo 4802248 is a 2-way mechanical soft-sealing ball valve featuring a nominal width DN of 40, an inside diameter of 44.3 mm, and an in-line installation design with clamp connections conforming to DIN 32676 series A. Based on DIN 32676 and ISO 5211 norms with an F0507 flange hole pattern, this 2/2 valve delivers a reversible flow direction, a flow rate Kv of 313 m³/h, and a nominal pressure PN of 16 with a breakaway torque of 30 Nm at differential pressure. It supports a medium temperature range of -20 °C to 200 °C for vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids, while incorporating RoHS compliance and VDMA24364 Zone III LABS conformity with any mounting position and a slot direction flow indication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4802248
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4802248.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Clamp according to DIN 32676 series A
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 44.3 mm
- Nominal width DN
- 40
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 30 Nm
- Based on norm
- DIN 32676 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 313 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4802248. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
