Festo
4808568

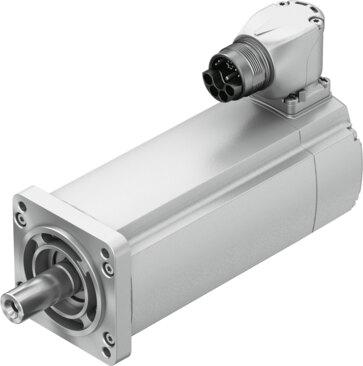

Servo motor EMMT-AS-60-
The Festo industrial component, part number 4808568, conforms to IEC 60034 with a thermal class F and rating class S1 according to EN 60034-1. It features digital motor temperature transmission via EnDat 2.2, a balancing quality of G 2.5, and a detent torque of less than 1.0% of peak torque, while operating within an ambient temperature range of -40 °C to 40 °C and an installation height up to 4000 m. The unit provides IP40 protection for the motor shaft without a rotary shaft seal, IP65 with a rotary shaft seal, and IP67 for the motor housing including connection technology. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4808568
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4808568.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...40 °C
- Note on ambient temperature
- Up to 80 °C with derating of -1.5% per degree Celsius
- Max. installation height
- 4000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 90%
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- F
- Max. winding temperature
- 155 °C
- Rating class according to EN 60034-1
- S1
- Temperature monitoring
- Digital motor temperature transmission via EnDat® 2.2
- Motor type as per EN 60034-7
- IM B5 | IM V1 | IM V3
- Mounting position
- Any
- Degree of protection
- IP40 | IP65
- Note on degree of protection
- IP40 for motor shaft without rotary shaft seal | IP65 for motor shaft with rotary shaft seal | IP67 for motor housing, incl. connection technology
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955
- N
- Balancing quality
- G 2.5
- Detent torque
- <1.0% of peak torque
- Bearing lifetime, under nominal conditions
- 20000 h
- Featherkey shaft design
- DIN 6885 | A 5 x 5 x 22
- Interface code, motor out
- 60P
- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology
- M23x1
- Electrical connection 1, number of pins/wires
- 15
- Contamination level
- 2
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4808568. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
