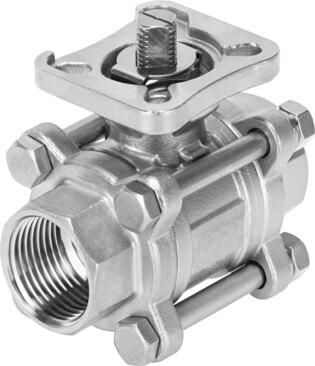

Reference imageConfirm configuration by manufacturer part number.
Festo
4809124
Ball valve VZBE-3-T-63-T-2-F0710-V15V16
Engineered with a soft sealing principle and a structural 2-way ball valve design, this Festo industrial component features a nominal width DN of 80, a 76 mm inside diameter, and a 3 NPT fitting connection. The mechanical actuation supports a reversible flow direction with a high flow rate Kv of 995 m³/h, handling media temperatures ranging from -20 °C to 200 °C at a nominal pressure PN of 63. Built in accordance with ASME B1.20.1 and ISO 5211 norms with an F0710 flange hole pattern, it accommodates compressed air, vapor, inert gas, water, and neutral liquids with VDMA24364 Zone III LABS conformity and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4809124
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4809124.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 3 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0710
- Inside diameter
- 76 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 103 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 995 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4809124. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
