4809126

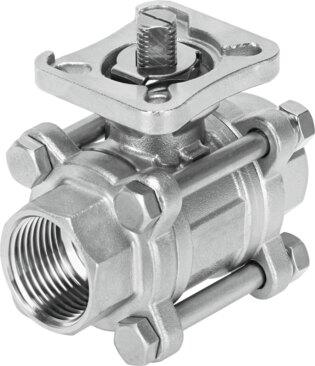

Name: Festo 4809126 Ball valve VZBE-4-T-63-T-2-F1012-V15V16
Brand: Festo

Ball valve VZBE-4-T-63-T-2-F1012-V15V16

The Festo 4809126 is a mechanical 2/2-way soft-sealing ball valve featuring an in-line installation design with a 4 NPT fitting connection, a nominal width DN of 100, and a 96 mm inside diameter. Built to ASME B1.20.1 and ISO 5211 norms with an F1012 flange hole pattern, this component accommodates a nominal pressure PN of 63, a breakaway torque of 138 Nm at nominal pressure, and a Kv flow rate of 1637 m³/h across a medium temperature range of -20 °C to 200 °C. It supports reversible flow for vapor, compressed air conforming to ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids, utilizing any mounting position alongside a switching position indication where the slot direction corresponds to the flow direction. RoHS compliant and meeting VDMA24364 Zone III LABS conformity, this model includes verifiable material notes and construction properties. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4809126
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4809126.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 2-way ball valve
Actuation type: Mechanical
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: 4 NPT
Switching position indication: Slot direction = ow direction
Flange hole pattern: F1012
Inside diameter: 96 mm
Nominal width DN: 100
Valve function: 2/2
Flow direction: Reversible
Nominal pressure of tting PN: 63
Breakaway torque at diﬀerential pressure, nominal pressure, tting PN: 138 Nm
Based on norm: ASME B1.20.1 | ISO 5211
Medium: Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
Temperature of medium: -20 °C...200 °C
Flow rate Kv: 1637 m³/h
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: Cast stainless steel
Material number of housing: 1,4408

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4809126. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
