Festo
4810852

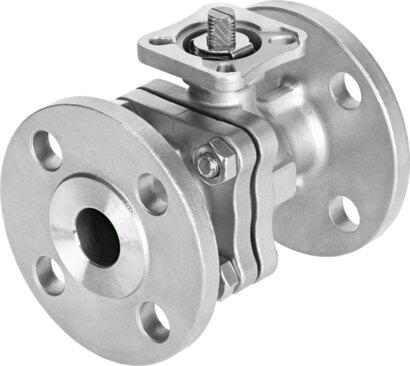

Ball valve VZBF-3/4-P1-20-D-2-F0304-V15V15
The Festo 4810852 is a mechanical 2-way ball valve featuring a soft sealing principle and an inside diameter of 20 mm with a nominal width DN of 20. This 2/2 valve function component supports a reversible flow direction, a flow rate Kv of 59 cubic meters per hour, and a nominal pressure PN of 20, operating across a medium temperature range of -20 °C to 200 °C with vapor, compressed air, inert gas, water, and neutral liquids. Featuring in-line installation with any mounting position, an ANSI B16.5 class 150 flange connection, and an F0304 flange hole pattern based on ANSI B16.5 class 150 and ISO 5211 norms, it requires a breakaway torque of 10 Nm at nominal pressure and includes RoHS compliance with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4810852
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4810852.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0304
- Inside diameter
- 20 mm
- Nominal width DN
- 20
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 10 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 59 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4810852. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
