Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4810854

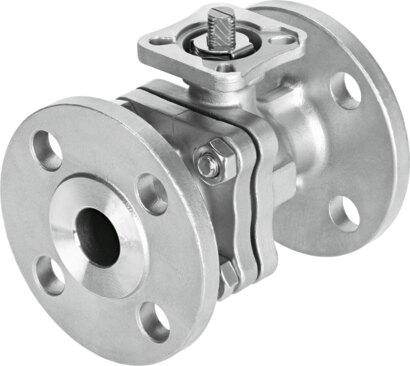

Ball valve VZBF-11/4-P1-20-D-2-F0405-V15V15
The Festo 4810854 is a 2-way mechanical soft-sealing ball valve featuring a 30 mm inside diameter, a nominal width DN of 32, and an in-line installation design utilizing an ANSI B16.5 class 150 flange connection with an F0405 flange hole pattern. Built on ANSI B16.5 class 150 and ISO 5211 norms with VDMA24364 Zone III LABS conformity and RoHS compliance, this 2/2 reversible flow component handles a nominal pressure PN of 20, a Kv flow rate of 140 m3/h, and a breakaway torque of 20 Nm at nominal pressure PN 20 across a medium temperature range of -20 °C to 200 °C. It operates with vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids in any mounting position, while utilizing slot direction for switching position indication. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4810854
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4810854.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0405
- Inside diameter
- 30 mm
- Nominal width DN
- 32
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 20 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 140 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4810854. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
