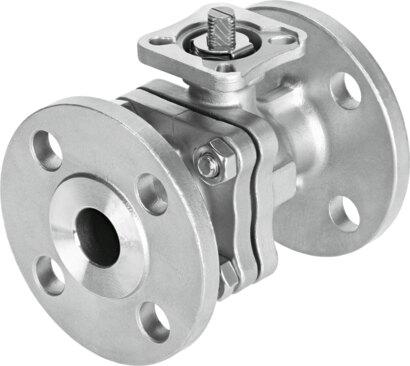

Reference imageConfirm configuration by manufacturer part number.
Festo
4810860
Ball valve VZBF-4-P1-20-D-2-F1012-V15V15
This Festo 2-way mechanical ball valve features a soft sealing principle and an inside diameter of 98 mm with a nominal width DN of 100, designed for in-line installation with any mounting position using an ANSI B16.5 class 150 flange connection and an F1012 flange hole pattern. The unit operates with a nominal pressure PN of 20, a breakaway torque of 130 Nm, and a flow rate Kv of 1707 m³/h, accommodating media temperatures from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids with reversible flow direction. Built in compliance with RoHS and VDMA24364 Zone III LABS conformity standards based on ANSI B16.5 class 150 and ISO 5211 norms, it includes slot direction flow position indication. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4810860
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4810860.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F1012
- Inside diameter
- 98 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 130 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 1707 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
