Festo
4810861

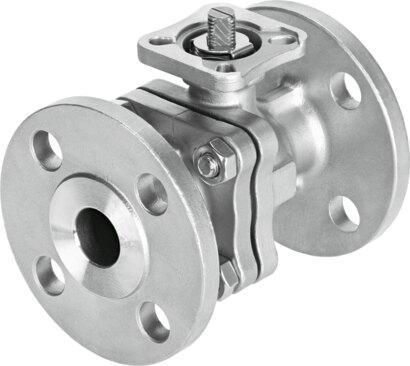

Ball valve VZBF-6-P1-20-D-2-F1012-V15V16
The Festo 4810861 is a 2-way mechanical soft-sealing ball valve featuring a 150 mm inside diameter, nominal width DN 150, and 2/2 valve function with a reversible flow direction. Built for in-line installation in any mounting position, it utilizes an ANSI B16.5 class 150 flange fitting connection, an F1012 flange hole pattern, and handles media temperatures ranging from -20 °C to 200 °C with a Kv flow rate of 4258 m³/h. This RoHS compliant component operates at a nominal pressure PN 20, exhibits a breakaway torque of 350 Nm at differential and nominal pressure, and is compatible with vapor, compressed air, inert gas, water, and neutral liquids. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4810861
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4810861.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F1012
- Inside diameter
- 150 mm
- Nominal width DN
- 150
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 350 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 4258 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4810861. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
