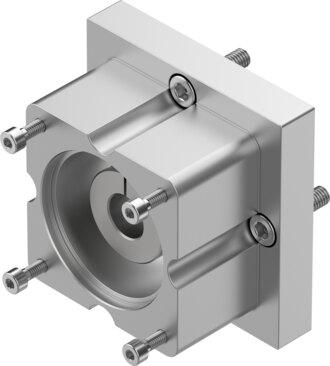

Reference imageConfirm configuration by manufacturer part number.
Festo
4824833
Axial kit EAMM-A-T46-60P
The Festo part number 4824833 is an industrial component featuring a nominal length of 47 mm, a mass moment of inertia of 3.2 kgmm², and a transferable torque of 10 Nm supporting a maximum rotational speed of 8000 rpm. This RoHS-compliant unit weighs 397 g, incorporates a T46 actuator interface code along with 60P and 60PA motor-in interface codes, and provides IP40 degree of protection for any mounting position. It functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and adheres to VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4824833
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4824833.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 47 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 10 Nm
- Product weight
- 397 g
- Interface code, actuator
- T46
- Interface code, motor in
- 60P | 60PA
- Note on materials
- RoHS compliant
