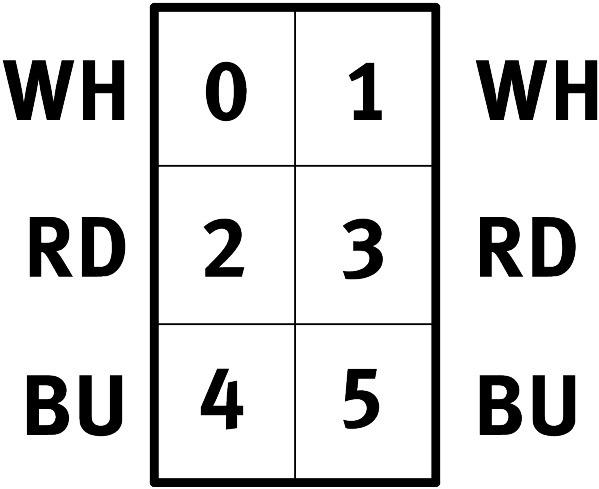

Reference imageConfirm configuration by manufacturer part number.
Festo
4827505
Counter module CPX-E-1CI
The Festo industrial component, part number 4827505, features dimensions of 18.9 mm by 76.6 mm by 124.3 mm and weighs 88 g. Designed for vertical or horizontal mounting on a DIN rail, this unit operates within an ambient temperature range of -5 °C to 50 °C, extending up to 60 °C for vertical installations, and withstands up to 95% non-condensating relative air humidity. It carries an IP20 degree of protection, CRC 0 corrosion resistance, and complies with EU EMC and RoHS directives, UKCA, KC-EMV, RCM, and cULus-Listed certifications under UL file E239998. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4827505
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4827505.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 18.9 mm x 76.6 mm x 124.3 mm
- Width dimension
- 18.9 mm
- Type of mounting
- With DIN rail
- Product weight
- 88 g
- Mounting position
- Vertical | Horizontal
- Ambient temperature
- -5 °C...50 °C
- Note on ambient temperature
- -5 - 60 °C for vertical installation
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP20
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA
- Material of screws
- Galvanized steel
- Diagnostics via LED
- Encoder supply fault | Faults per module | Sensor error | Encoder normal operation | Encoder supply normal operation | Status per channel
