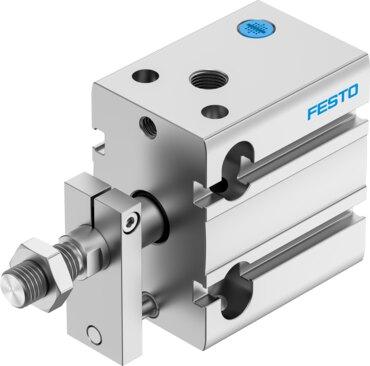

Name: Festo 4828500 Compact cylinder DPDM-Q-32-10-P-PA
Brand: Festo

Compact cylinder DPDM-Q-32-10-P-PA

The Festo part number 4828500 is a single-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and a pulling mode of operation with a piston rod at one end. This model utilizes a profile barrel structural design equipped with elastic cushioning rings at both ends, a guide rod with a yoke for torsion protection, and position sensing via proximity switch. It operates within a pressure range of 0.15 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting and advancing force of 377 N at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4828500
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4828500.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 32 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Single-acting | Pulling
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Piston rod at one end
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Theoretical force at 6 bar, retracting: 377 N
Theoretical force at 6 bar, advancing: 377 N
Moving mass at 0 mm stroke: 109 g
Additional moving mass per 10 mm stroke: 10.5 g
Basic weight with 0 mm stroke: 334 g
Additional weight per 10 mm stroke: 52.5 g
Type of mounting: Alternatively: | With through-hole | With internal thread
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Seals material: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4828500. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
