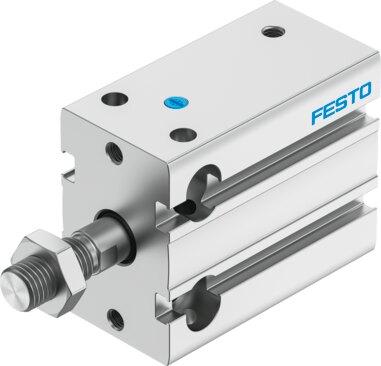

Reference imageConfirm configuration by manufacturer part number.
Festo
4829801
Compact cylinder DPDM-25-15-S-PA
The Festo 4829801 is a single-acting industrial component featuring a 25 mm piston diameter, a 15 mm stroke, and elastic cushioning rings or pads at both ends. Operating on compressed air within a 0.15 MPa to 0.8 MPa range, this piston-rod profile barrel delivers a theoretical advancing force of 269 N at 6 bar and supports position sensing via proximity switch. It accommodates any mounting position across an ambient temperature range of -10 °C to 80 °C while maintaining a basic weight of 192 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4829801
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4829801.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Theoretical force at 6 bar
- 269 N
- Theoretical force at 6 bar, advancing
- 269 N
- Moving mass at 0 mm stroke
- 58 g
- Additional moving mass per 10 mm stroke
- 6.5 g
- Basic weight with 0 mm stroke
- 192 g
- Additional weight per 10 mm stroke
- 33.5 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy, anodized
