Festo
4830947

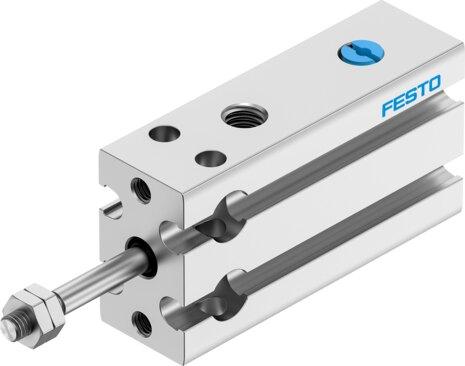

Compact cylinder DPDM-6-10-P-PA
The Festo part number 4830947 is a single-acting industrial component featuring a 6 mm piston diameter, a 10 mm stroke, and a pulling mode of operation with elastic cushioning rings at both ends. Operating on compressed air within a pressure range of 2.5 bar to 8 bar, this piston-rod profile barrel design delivers a theoretical retracting and advancing force of 9 N at 6 bar. Constructed with a basic weight of 21 g and a corrosion resistance class of CRC 1, the unit supports position sensing via a proximity switch and functions within an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4830947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4830947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting | Pulling
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Theoretical force at 6 bar, retracting
- 9 N
- Theoretical force at 6 bar, advancing
- 9 N
- Moving mass at 0 mm stroke
- 3 g
- Additional moving mass per 10 mm stroke
- 0.6 g
- Basic weight with 0 mm stroke
- 21 g
- Additional weight per 10 mm stroke
- 6.3 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy, anodized
