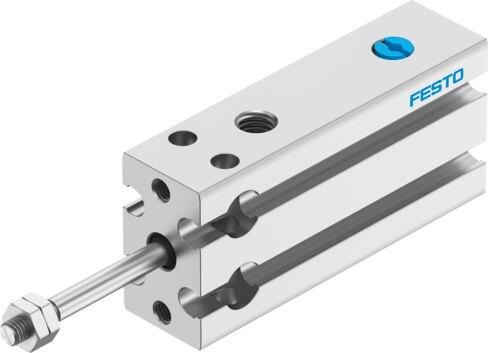

Name: Festo 4830948 Compact cylinder DPDM-6-15-P-PA
Brand: Festo

Compact cylinder DPDM-6-15-P-PA

The Festo part number 4830948 is a single-acting industrial component featuring a 6 mm piston diameter and a 15 mm stroke with pulling operation via a piston rod at one end. Designed with elastic cushioning rings at both ends and a profile barrel structural design, it operates within a pressure range of 2.5 bar to 8 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. This unit provides a theoretical retracting and advancing force of 9 N at 6 bar, an ambient temperature range of -10 °C to 80 °C, and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4830948
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4830948.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 6 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Single-acting | Pulling
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Theoretical force at 6 bar, retracting: 9 N
Theoretical force at 6 bar, advancing: 9 N
Moving mass at 0 mm stroke: 3 g
Additional moving mass per 10 mm stroke: 0.6 g
Basic weight with 0 mm stroke: 21 g
Additional weight per 10 mm stroke: 6.3 g
Type of mounting: Alternatively: | With through-hole | With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Seals material: TPE-U(PU)
Housing material: Wrought aluminum alloy, anodized
