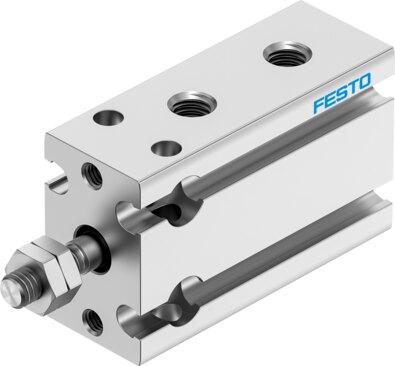

Reference imageConfirm configuration by manufacturer part number.
Festo
4831868
Compact cylinder DPDM-10-5-PA
The Festo part number 4831868 is a double-acting industrial component featuring a 10 mm piston diameter and a 5 mm stroke with a piston rod at one end. It operates within a pressure range of 0.15 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and subsequently required for continuous use. Position sensing is accomplished via proximity switch, and the unit achieves a theoretical force of 47 N advancing and 40 N retracting at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4831868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4831868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Theoretical force at 6 bar
- 47 N
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Moving mass at 0 mm stroke
- 6.3 g
- Additional moving mass per 10 mm stroke
- 1 g
- Basic weight with 0 mm stroke
- 30 g
- Additional weight per 10 mm stroke
- 7.5 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
