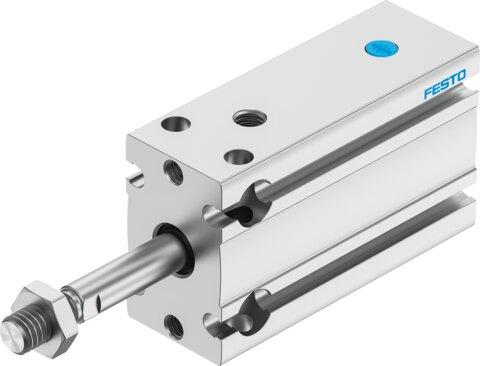

Name: Festo 4833323 Compact cylinder DPDM-16-15-P-PA
Brand: Festo

Compact cylinder DPDM-16-15-P-PA

The Festo 4833323 is a single-acting industrial component featuring a 16 mm piston diameter, a 15 mm stroke, and pulling mode of operation with a piston rod at one end. Operating on compressed air within a 2 bar to 8 bar pressure range, it delivers a theoretical retracting and advancing force of 93 N at 6 bar while utilizing elastic cushioning rings at both ends. Constructed with a profile barrel design and rated for ISO 14644-1 cleanroom class 6 with a CRC 2 corrosion resistance, this unit functions across an ambient temperature range of -10 °C to 80 °C and supports position sensing via a proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4833323
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4833323.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 16 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Single-acting | Pulling
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Theoretical force at 6 bar, retracting: 93 N
Theoretical force at 6 bar, advancing: 93 N
Moving mass at 0 mm stroke: 18 g
Additional moving mass per 10 mm stroke: 2.3 g
Basic weight with 0 mm stroke: 66 g
Additional weight per 10 mm stroke: 13 g
Type of mounting: Alternatively: | With through-hole | With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Seals material: TPE-U(PU)
Housing material: Wrought aluminum alloy, anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4833323. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
