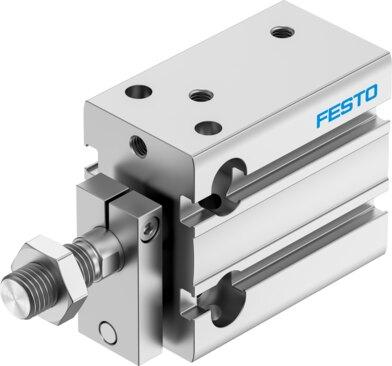

Reference imageConfirm configuration by manufacturer part number.
Festo
4840825
Compact cylinder DPDM-Q-25-10-PA
The Festo part number 4840825 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and a profile barrel structural design with a guide rod and yoke for torsion protection. This unit operates within a pressure range of 1 bar to 8 bar using compressed air according to ISO 8573-1:2010 [7:4:4], delivering a theoretical advancing force of 295 N and retracting force of 247 N at 6 bar. Position sensing is achieved via proximity switch, and the assembly incorporates elastic cushioning rings at both ends alongside an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4840825
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4840825.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Theoretical force at 6 bar
- 295 N
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass at 0 mm stroke
- 76 g
- Additional moving mass per 10 mm stroke
- 8 g
- Basic weight with 0 mm stroke
- 223 g
- Additional weight per 10 mm stroke
- 35 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- TPE-U(PU)
