Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

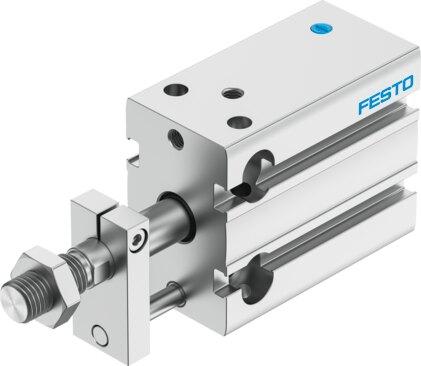

Reference imageConfirm configuration by manufacturer part number.
Festo
4840840
Compact cylinder DPDM-Q-25-15-P-PA
The Festo 4840840 is a single-acting industrial component featuring a 25 mm piston diameter, a 15 mm stroke, and a pulling mode of operation with elastic cushioning rings at both ends. Designed with a piston rod at one end and a guide rod with a yoke providing protection against torsion, this profile barrel assembly operates on compressed air from 1.5 to 8 bar within an ambient temperature range of -10 °C to 80 °C. It achieves a theoretical retracting and advancing force of 221 N at 6 bar, incorporates position sensing via proximity switch, and meets ISO 14644-1 Class 6 cleanroom suitability with a CRC 2 moderate corrosion resistance rating. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4840840
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4840840.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting | Pulling
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Theoretical force at 6 bar, retracting
- 221 N
- Theoretical force at 6 bar, advancing
- 221 N
- Moving mass at 0 mm stroke
- 76 g
- Additional moving mass per 10 mm stroke
- 8 g
- Basic weight with 0 mm stroke
- 226 g
- Additional weight per 10 mm stroke
- 35 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4840840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
