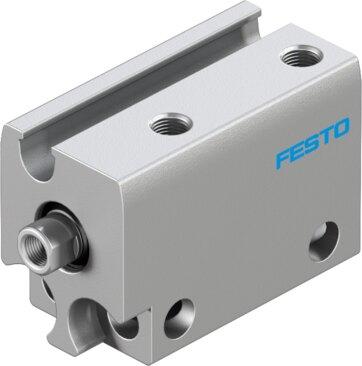

Reference imageConfirm configuration by manufacturer part number.
Festo
4886886
Compact cylinder ADN-S-6-10-I
The Festo part number 4886886 is a double-acting industrial component featuring a 6 mm piston diameter and a 10 mm stroke with a piston rod at one end. Designed with internal thread at the piston rod end and no cushioning, this unit operates within a pressure range of 0.2 MPa to 0.8 MPa utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. It yields a theoretical force of 17 N advancing and 9.4 N retracting at 6 bar, while maintaining a moderate corrosion resistance class of CRC 2 and ISO Class 5 cleanroom suitability. Submit part number 4886886 along with your required quantity and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4886886
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4886886.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod
- Variants
- Piston rod at one end
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.006 J
- Theoretical force at 6 bar, retracting
- 9.4 N
- Theoretical force at 6 bar, advancing
- 17 N
- Moving mass
- 2.3 g
- Product weight
- 15 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4886886. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
