Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

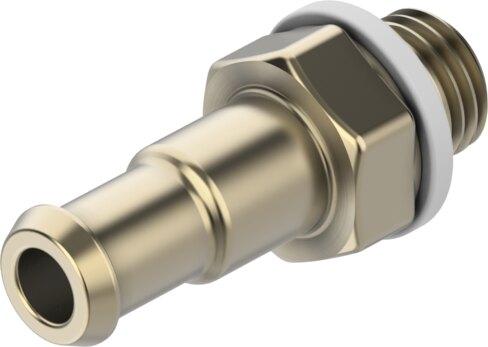

Reference imageConfirm configuration by manufacturer part number.
Festo
4902
Barb fitting N-M5-PK-4
The Festo part number 4902 is a straight-design industrial component featuring a brass housing, an M5 external thread pneumatic connection 1, and a pneumatic connection 2 for tubing with a 6 mm outside diameter. This component provides a 2.5 mm nominal width, a sealing ring type of seal on the screwed plug, and operates across a pressure range of -0.95 bar to 10 bar with compressed air as per ISO 8573-1:2010 [7:-:-]. Featuring a product weight of 2 g, a corrosion resistance class of CRC 1, and an ambient temperature range of -10 °C to 60 °C, it supports any mounting position and permits oil lubrication operation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4902
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4902.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2 g
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Housing material
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4902. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
