Festo
4932

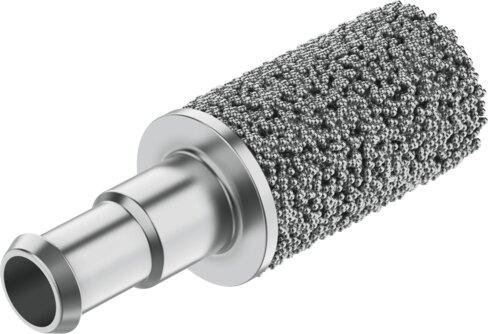

Pneumatic muffler U-PK-4
The Festo part number 4932 is an industrial component featuring a PK-4 pneumatic connection, a flow rate of 580 l/min with respect to atmosphere, and an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar). Constructed with a bronze cushioning insert and a brass screwed plug, this RoHS-compliant unit operates within an ambient temperature range of -10 °C to 70 °C and produces a noise level of 77 dB(A). It supports any mounting position, utilizes compressed air as per ISO 8573-1:2010 [7:-:-] as the operating medium with lubricated operation possible, conforms to VDMA24364-B1/B2-L LABS (PWIS), and weighs 4.1 g. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4932
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4932.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 580 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 77 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 4.1 g
- Pneumatic connection
- PK-4
- Cushioning insert material
- Bronze
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
