Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

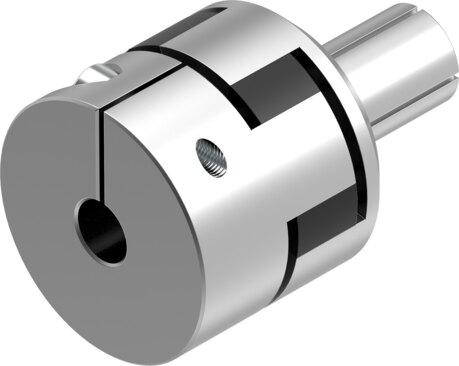

Reference imageConfirm configuration by manufacturer part number.
Festo
5056644
Coupling EAMD-42-40-18-16X25
The Festo industrial component, part number 5056644, features an 18 mm diameter for holder 1, a 16 mm diameter for holder 2, and a size 42 nominal length of 40 mm with a product weight of 192 g. It supports any mounting position, a maximum rotational speed of 6000 rpm, a transferable torque of 17 Nm, and a mass moment of inertia of 39 kgmm², adhering to VDMA24364-B2-L LABS conformity and RoHS material guidelines. Operating and storage temperatures span -25 °C to 60 °C alongside a relative air humidity range of 0 to 95%. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5056644
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5056644.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 18 mm
- Diameter of holder 2
- 16 mm
- Size
- 42
- Nominal length
- 40 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 192 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5056644. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
