Festo
5072352

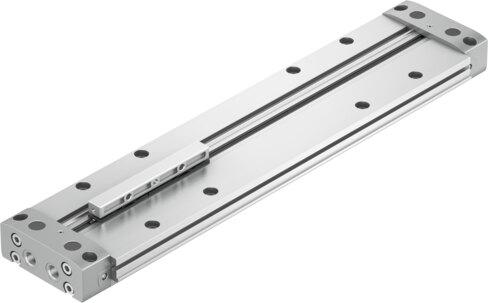

Linear actuator DLGF-G-25-200-PPSA
The Festo 5072352 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and self-adjusting pneumatic end-position cushioning with a 9 mm cushioning length. Operating on compressed air within a pressure range of 0.15 MPa to 0.8 MPa, this unit includes a basic guide with a positive locking driver principle, position sensing via proximity switch, and allows for optional oil lubrication. Designed for any mounting position, it delivers a max force Fz towards the actuator of 164 N, a max force +Fz away from the actuator of 95 N, and a max torque Mx of 1.1 Nm within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5072352
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5072352.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 200 mm
- Piston diameter
- 25 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 164 N
- Max. force +Fz (away from actuator)
- 95 N
- Max. torque Mx
- 1.1 Nm
- Max. torque My
- 4.5 Nm
- Max. torque Mz
- 1.4 Nm
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 110 g
- Product weight
- 1660 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5072352. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
