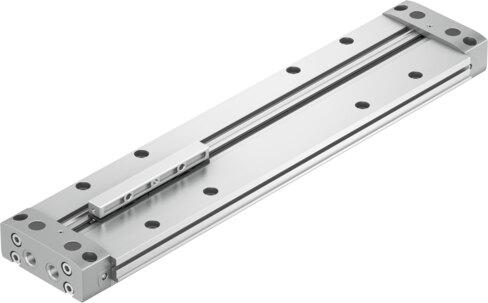

Reference imageConfirm configuration by manufacturer part number.
Festo
5072353
Linear actuator DLGF-G-25-250-PPSA
The Festo part number 5072353 is a double-acting industrial component featuring a 25 mm piston diameter and a 250 mm stroke, operating at pressures from 0.15 MPa to 0.8 MPa with compressed air conforming to ISO 8573-1:2010 [7:-:-]. Equipped with a basic guide, positive locking driver principle, and self-adjusting pneumatic end-position cushioning with a 9 mm cushioning length, it supports position sensing via proximity switch and operates within an ambient temperature range of 0 °C to 60 °C. The unit accommodates any mounting position while providing a maximum force Fz towards the actuator of 164 N, away from the actuator of 95 N, and a maximum torque Mx of 1.1 Nm under CRC 1 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5072353
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5072353.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 250 mm
- Piston diameter
- 25 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 164 N
- Max. force +Fz (away from actuator)
- 95 N
- Max. torque Mx
- 1.1 Nm
- Max. torque My
- 4.5 Nm
- Max. torque Mz
- 1.4 Nm
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 110 g
- Product weight
- 1836 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5072353. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
