Festo
5072372

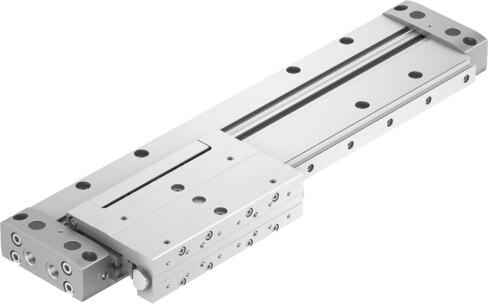

Linear actuator DLGF-KF-25-200-PPSA
The Festo 5072372 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and self-adjusting pneumatic end-position cushioning with a 9 mm cushioning length. Operating on compressed air within a pressure range of 0.15 MPa to 0.8 MPa, this unit includes a recirculating ball bearing guide, positive locking driver principle, and proximity switch position sensing for an ambient temperature range of 0 °C to 60 °C. It supports maximum forces of 1000 N for Fy, 1200 N for Fz towards the actuator, and 700 N away from the actuator, along with a maximum torque Mx of 12.3 Nm, while maintaining ISO 14644-1 Class 6 cleanroom suitability and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5072372
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5072372.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 200 mm
- Piston diameter
- 25 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9 mm
- Max. force Fy
- 1000 N
- Max. force Fz (towards actuator)
- 1200 N
- Max. force +Fz (away from actuator)
- 700 N
- Max. torque Mx
- 12.3 Nm
- Max. torque My
- 30 Nm
- Max. torque Mz
- 30 Nm
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 760 g
- Product weight
- 2547 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
