Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

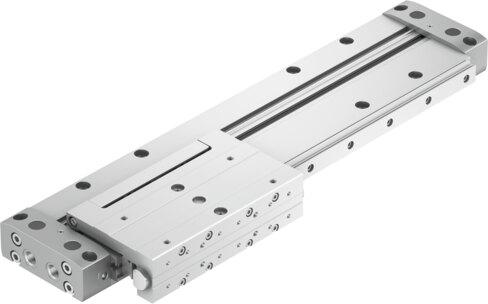

Reference imageConfirm configuration by manufacturer part number.
Festo
5072380
Linear actuator DLGF-KF-25-600-PPSA
The Festo part number 5072380 is a double-acting industrial component featuring a 25 mm piston diameter, a 600 mm stroke, and a positive locking driver principle with a recirculating ball bearing guide. Operating on compressed air according to ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa, it includes self-adjusting pneumatic end-position cushioning with a 9 mm cushioning length and position sensing via proximity switch. The unit accommodates any mounting position, an ambient temperature range of 0 °C to 60 °C, oil lubrication operation if required, and achieves ISO 14644-1 Class 6 cleanroom suitability with a maximum force Fy of 1000 N, max force Fz towards the actuator of 1200 N, max force +Fz away from the actuator of 700 N, and a maximum torque Mx of 12.3 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5072380
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5072380.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 600 mm
- Piston diameter
- 25 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9 mm
- Max. force Fy
- 1000 N
- Max. force Fz (towards actuator)
- 1200 N
- Max. force +Fz (away from actuator)
- 700 N
- Max. torque Mx
- 12.3 Nm
- Max. torque My
- 30 Nm
- Max. torque Mz
- 30 Nm
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 760 g
- Product weight
- 4356 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5072380. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
