Festo
5074784

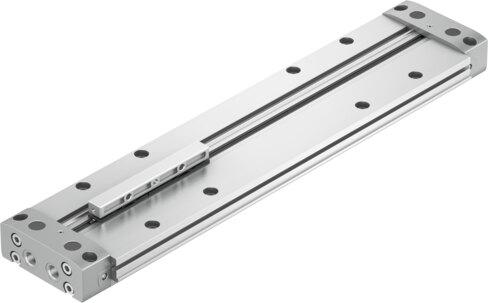

Linear actuator DLGF-G-32-300-PPSA
Engineered by Festo, the part number 5074784 is a double-acting industrial component featuring a 32 mm piston diameter, a 300 mm stroke, and self-adjusting pneumatic end-position cushioning with an 11.6 mm cushioning length. Operating on compressed air within a pressure range of 0.15 MPa to 0.8 MPa, this unit utilizes a positive locking driver principle, a basic guide, and position sensing via proximity switch. It is rated for an ambient temperature range of 0 °C to 60 °C, supports any mounting position, meets ISO 14644-1 Cleanroom Class 6 standards, and accommodates a maximum force Fz towards the actuator of 276 N alongside a max torque Mx of 1.8 Nm. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5074784
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5074784.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 300 mm
- Piston diameter
- 32 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 11.6 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 276 N
- Max. force +Fz (away from actuator)
- 138 N
- Max. torque Mx
- 1.8 Nm
- Max. torque My
- 7.6 Nm
- Max. torque Mz
- 2.9 Nm
- Theoretical force at 6 bar, retracting
- 483 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass
- 208 g
- Product weight
- 3349 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5074784. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
