Name: Festo 5074786 Linear actuator DLGF-G-32-400-PPSA
Brand: Festo

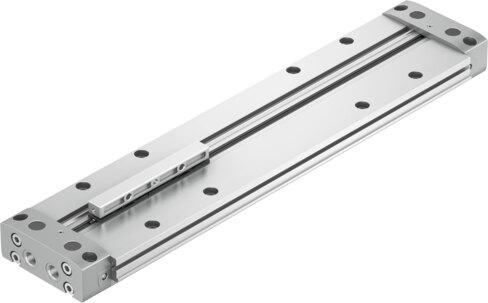

Linear actuator DLGF-G-32-400-PPSA

The Festo 5074786 is a double-acting industrial component featuring a 32 mm piston diameter, a 400 mm stroke, and self-adjusting pneumatic end-position cushioning with a cushioning length of 11.6 mm. Operating via compressed air as per ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this unit utilizes a positive locking slot driver principle, a basic guide, and enables position sensing via a proximity switch in any mounting position. It exhibits a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 cleanroom suitability (Class 6), and an ambient temperature range of 0 °C to 60 °C, with oil lubrication permitted and required for continued use. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5074786
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5074786.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 400 mm
Piston diameter: 32 mm
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Guide: Basic guide
Driver principle: Positive locking (slot)
Position sensing: Via proximity switch
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Cushioning length: 11.6 mm
Max. force Fy: 0 N
Max. force Fz (towards actuator): 276 N
Max. force +Fz (away from actuator): 138 N
Max. torque Mx: 1.8 Nm
Max. torque My: 7.6 Nm
Max. torque Mz: 2.9 Nm
Theoretical force at 6 bar, retracting: 483 N
Theoretical force at 6 bar, advancing: 483 N
Moving mass: 208 g
Product weight: 3893 g
Alternative connections: See product drawing
Type of mounting: Direct mounting via through-hole | With accessories
Pneumatic connection: G1/8

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 5074786. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
