Festo
5074788

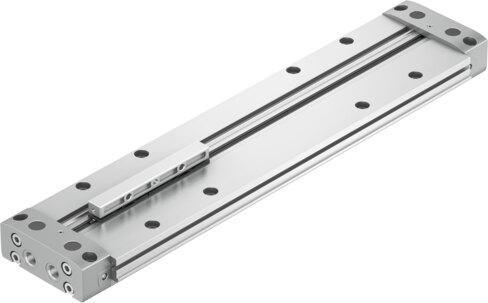

Linear actuator DLGF-G-32-500-PPSA
The Festo 5074788 is a double-acting industrial component featuring a 32 mm piston diameter, a 500 mm stroke, and self-adjusting pneumatic end-position cushioning with an 11.6 mm cushioning length. Operating via compressed air conforming to ISO 8573-1:2010 [7:-:-] at pressures from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this unit utilizes a basic guide with a positive locking driver principle and allows position sensing via proximity switch in any mounting position. It exhibits a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 Class 6 cleanroom suitability, an ambient temperature range of 0 °C to 60 °C, and accommodates oil lubrication if required for further use. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5074788
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5074788.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 500 mm
- Piston diameter
- 32 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 11.6 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 276 N
- Max. force +Fz (away from actuator)
- 138 N
- Max. torque Mx
- 1.8 Nm
- Max. torque My
- 7.6 Nm
- Max. torque Mz
- 2.9 Nm
- Theoretical force at 6 bar, retracting
- 483 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass
- 208 g
- Product weight
- 4437 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
