Festo
5074790

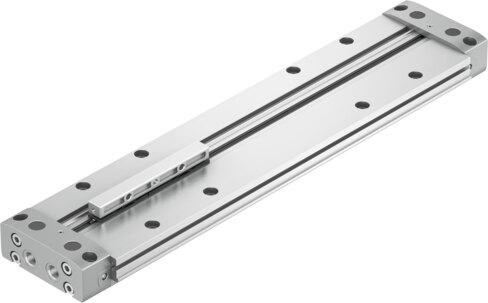

Linear actuator DLGF-G-32-600-PPSA
The Festo 5074790 is a double-acting industrial component featuring a 32 mm piston diameter, a 600 mm stroke, and self-adjusting pneumatic end-position cushioning with an 11.6 mm cushioning length. Operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) on compressed air as per ISO 8573-1:2010 [7:-:-], this unit utilizes a positive locking driver principle, basic guide, and proximity switch position sensing while accommodating any mounting position and optional oil lubrication. Rated for ambient temperatures between 0 °C and 60 °C, the assembly yields a maximum Fz force of 276 N towards the actuator, 138 N away from the actuator, and a maximum Mx torque of 1.8 Nm, alongside a CRC corrosion resistance of 1, LABS conformity VDMA24364-B1/B2-L, and ISO 14644-1 cleanroom suitability class 6. Submit part number 5074790, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5074790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5074790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 600 mm
- Piston diameter
- 32 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 11.6 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 276 N
- Max. force +Fz (away from actuator)
- 138 N
- Max. torque Mx
- 1.8 Nm
- Max. torque My
- 7.6 Nm
- Max. torque Mz
- 2.9 Nm
- Theoretical force at 6 bar, retracting
- 483 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass
- 208 g
- Product weight
- 4988 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5074790. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
