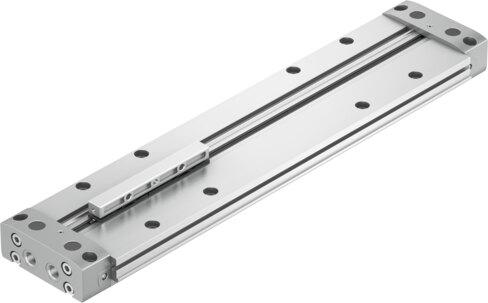

Reference imageConfirm configuration by manufacturer part number.
Festo
5074919
Linear actuator DLGF-G-20-150-PPSA
The Festo 5074919 is a double-acting industrial component featuring a 20 mm piston diameter and a 150 mm stroke, operating via compressed air in accordance with ISO 8573-1:2010 [7:-:-] at pressures from 2 bar to 8 bar. This unit incorporates self-adjusting pneumatic end-position cushioning with a 9.6 mm cushioning length, a basic guide with positive locking slot driver principle, and position sensing via proximity switch for any mounting position. It achieves an ambient temperature range of 0 °C to 60 °C, a corrosion resistance class of 1, ISO 14644-1 cleanroom suitability of class 6, and accommodates maximum forces of 98 N towards the actuator and 54 N away from the actuator alongside a 0.6 Nm max torque Mx. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5074919
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5074919.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 150 mm
- Piston diameter
- 20 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9.6 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 98 N
- Max. force +Fz (away from actuator)
- 54 N
- Max. torque Mx
- 0.6 Nm
- Max. torque My
- 2.2 Nm
- Max. torque Mz
- 0.7 Nm
- Theoretical force at 6 bar, retracting
- 188 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass
- 66 g
- Product weight
- 1014 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- M5
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5074919. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
