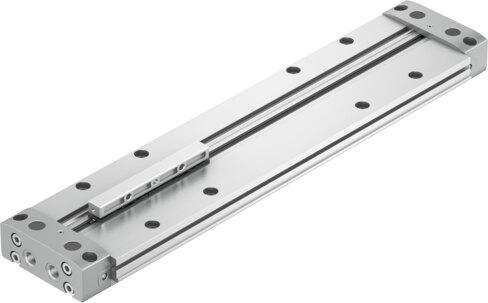

Reference imageConfirm configuration by manufacturer part number.
Festo
5074923
Linear actuator DLGF-G-20-350-PPSA
This Festo industrial component, part number 5074923, is a double-acting drive featuring a 20 mm piston diameter, a 350 mm stroke, and a basic guide operating on compressed air according to ISO 8573-1:2010 [7:-:-] at pressures from 0.2 MPa to 0.8 MPa (2 bar to 8 bar). It incorporates self-adjusting pneumatic end-position cushioning with a 9.6 mm cushioning length, positive locking driver principle, position sensing via proximity switch, and allows for optional oil lubrication. The unit operates within an ambient temperature range of 0 °C to 60 °C, achieves ISO 14644-1 Class 6 cleanroom suitability, and withstands a max. force Fz towards the actuator of 98 N, away from the actuator of 54 N, and a max. torque Mx of 0.6 Nm under CRC 1 low corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5074923
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5074923.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 350 mm
- Piston diameter
- 20 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9.6 mm
- Max. force Fy
- 0 N
- Max. force Fz (towards actuator)
- 98 N
- Max. force +Fz (away from actuator)
- 54 N
- Max. torque Mx
- 0.6 Nm
- Max. torque My
- 2.2 Nm
- Max. torque Mz
- 0.7 Nm
- Theoretical force at 6 bar, retracting
- 188 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass
- 66 g
- Product weight
- 1576 g
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- M5
