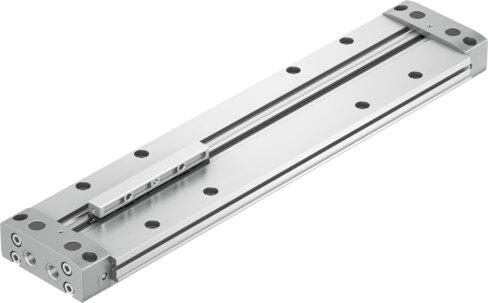

Name: Festo 5074924 Linear actuator DLGF-G-20-400-PPSA
Brand: Festo

Linear actuator DLGF-G-20-400-PPSA

The Festo part number 5074924 is a double-acting industrial component featuring a 20 mm piston diameter and a 400 mm stroke. Operating on compressed air within a pressure range of 2 bar to 8 bar, it includes self-adjusting pneumatic end-position cushioning with a 9.6 mm cushioning length and basic guide with positive locking slot driver principle. This unit achieves ISO 14644-1 class 6 cleanroom suitability and supports position sensing via proximity switch across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5074924
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5074924.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 400 mm
Piston diameter: 20 mm
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Guide: Basic guide
Driver principle: Positive locking (slot)
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Cushioning length: 9.6 mm
Max. force Fy: 0 N
Max. force Fz (towards actuator): 98 N
Max. force +Fz (away from actuator): 54 N
Max. torque Mx: 0.6 Nm
Max. torque My: 2.2 Nm
Max. torque Mz: 0.7 Nm
Theoretical force at 6 bar, retracting: 188 N
Theoretical force at 6 bar, advancing: 188 N
Moving mass: 66 g
Product weight: 1717 g
Alternative connections: See product drawing
Type of mounting: Direct mounting via through-hole | With accessories
Pneumatic connection: M5
