Festo
5078084

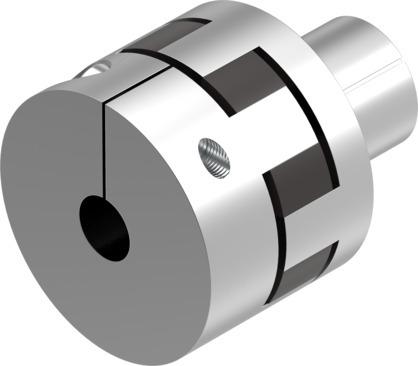

Coupling EAMD-75-51-40-32X32-U
The Festo 5078084 is a size 75 industrial component featuring a nominal length of 51 mm, a 40 mm diameter holder 1, and a 32 mm diameter holder 2. This RoHS-compliant unit weighs 741 g with a mass moment of inertia of 425 kgmm², supporting a transferable torque of 200 Nm and a maximum rotational speed of 4500 rpm across any mounting position. It operates and is stored within a temperature range of -25 °C to 60 °C and 0 to 95 % relative air humidity, adhering to VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5078084
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5078084.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 40 mm
- Diameter of holder 2
- 32 mm
- Size
- 75
- Nominal length
- 51 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 425 kgmm²
- Transferable torque
- 200 Nm
- Product weight
- 741 g
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5078084. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
