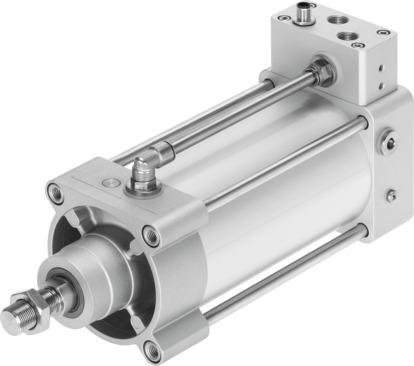

Reference imageConfirm configuration by manufacturer part number.
Festo
5078949
Linear actuator DFPI-100- -
The Festo part number 5078949 is an ISO 15552 industrial component featuring a 100 mm piston diameter, a 100 valve actuator size, and a stroke range from 40 mm to 990 mm. This double-acting unit utilizes a piston, piston rod, tie rod 1, and cylinder barrel structural design with no cushioning and allows for any mounting position across an operating pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar, 43.5 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar). Position sensing is provided by an integrated linear potentiometer operating on a potentiometer measuring principle with reverse polarity protection, a two-wire power supply ranging from 9 V to 30 V DC, a 4 - 20 mA analog output, a 0.1 µA recommended contact current, and a 10 mA max. short-time slider current, backed by RCM compliance mark and KC-EMV certifications. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5078949
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5078949.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 100
- Stroke
- 40 mm...990 mm
- Piston diameter
- 100 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Yes
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 9 V...30 V
- Recommended contact current
- 0.1 µA
- Max. short-time slider current
- 10 mA
- Power supply
- Two-wire
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
