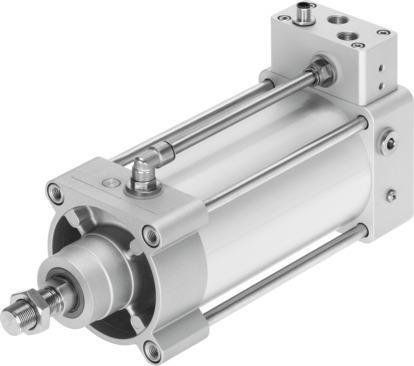

Reference imageConfirm configuration by manufacturer part number.
Festo
5087658
Linear actuator DFPI-125- -
The Festo 5087658 is an ISO 15552 industrial component featuring a 125 mm piston diameter, a 125 valve actuator size, and a stroke range of 40 mm to 990 mm. This double-acting tie rod cylinder operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) at a nominal operating pressure of 0.6 MPa, and includes integrated linear potentiometer position sensing with a 4 - 20 mA analog output. It supports a DC operating voltage from 9 V to 30 V via a two-wire power supply featuring reverse polarity protection, RCM compliance, and KC-EMV certification. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5087658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5087658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 125
- Stroke
- 40 mm...990 mm
- Piston diameter
- 125 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Yes
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 9 V...30 V
- Recommended contact current
- 0.1 µA
- Max. short-time slider current
- 10 mA
- Power supply
- Two-wire
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
