Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

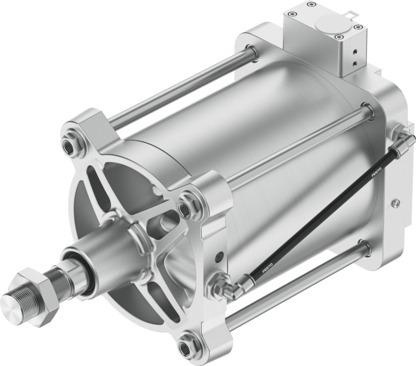

Reference imageConfirm configuration by manufacturer part number.
Festo
5092508
Linear actuator DFPI-200- -
The Festo 5092508 is an ISO 15552 industrial component featuring a double-acting mode of operation with a 200 mm piston diameter, a 200 size valve actuator, and a stroke ranging from 40 mm to 990 mm. Its structural design consists of a piston, piston rod, tie rod 1, and cylinder barrel, and it operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar, or 43.5 psi to 116 psi) with a nominal operating pressure of 0.6 MPa (6 bar) without cushioning. Position sensing is provided by an integrated linear potentiometer operating on a two-wire power supply with a DC operating voltage range of 9 V to 30 V, a 4 - 20 mA analog output, reverse polarity protection, a recommended contact current of 0.1 µA, and a max. short-time slider current of 10 mA, while holding RCM compliance and KC-EMV certifications for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5092508
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5092508.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 200
- Stroke
- 40 mm...990 mm
- Piston diameter
- 200 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Yes
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 9 V...30 V
- Recommended contact current
- 0.1 µA
- Max. short-time slider current
- 10 mA
- Power supply
- Two-wire
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5092508. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
