Festo
5105619
Motor cable NEBM-SM12G8-E-20-Q5-LE6
The Festo 5105619 is an industrial component featuring a straight M12x1 A-coded round plug on the field device side with 8 pins and 6 occupied wires, coupled to a 20-meter shielded cable with an open-end control side containing 6 wires and no label holder. Built with a 6.2 mm cable diameter and a 62 mm flexible installation bending radius, this assembly supports an operating voltage range of 0 V to 72 V DC and a nominal operating voltage of 24 V DC while maintaining a cable characteristic suitable for energy chains. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5105619
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5105619.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

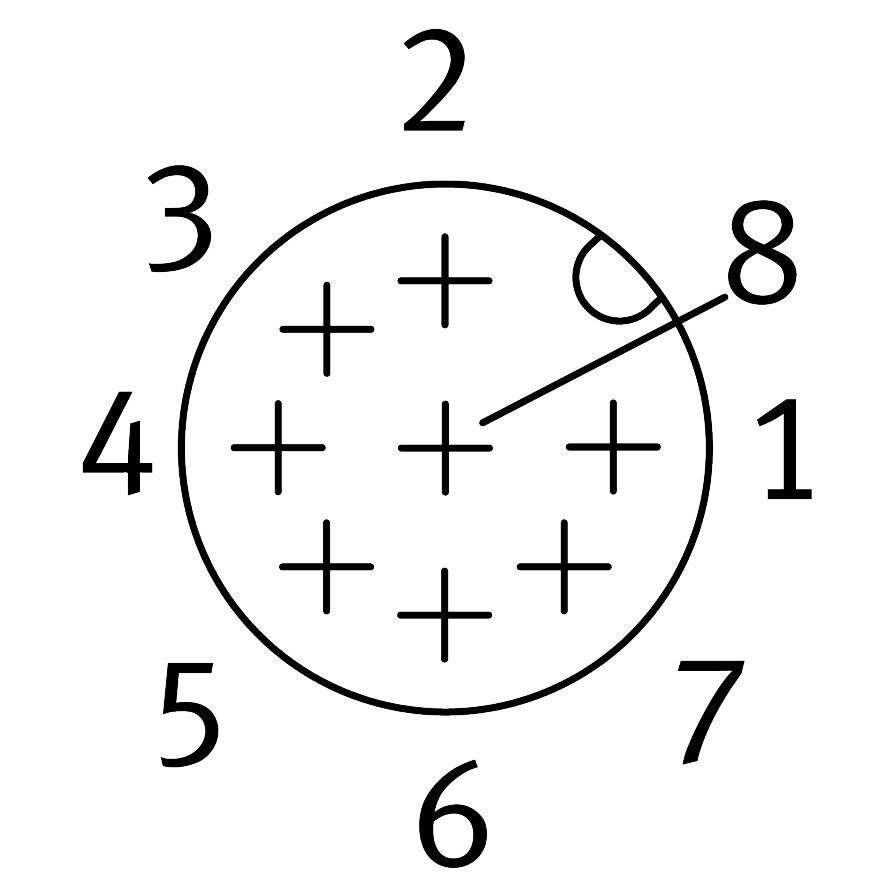

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 6
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...72 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 20 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, exible cable installation
- 62 mm
- Cable diameter
- 6.2 mm
- Cable design
- 6 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
