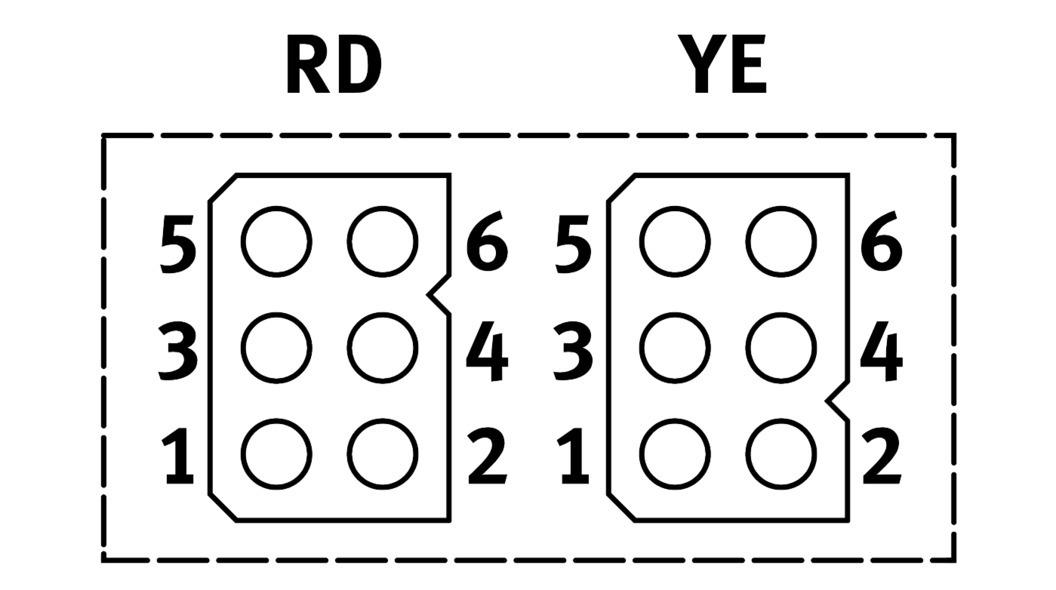

Reference imageConfirm configuration by manufacturer part number.
Festo
5105627
Encoder cable NEBM-T1G8-E-20-N-S1G15
Festo Encoder cable NEBM-T1G8-E-20-N-S1G15, part number 5105627, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 5105627
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5105627.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Cable designation
- Without label holder
- Product weight
- 1060 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- ITT M3
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 15
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 0 V...30 V
- Nominal operating voltage AC
- 24 V
- Shield
- Yes
- Cable length
- 20 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, exible cable installation
- 48 mm
- Cable diameter
- 5.8 mm
- Cable design
- 1 x 4 x 0.15 mm² + 4 x 0.34 mm²
- Nominal conductor cross section
- 0.15 mm² | 0.34 mm²
- Degree of protection
- IP65
- Note on degree of protection
- IP30 for Sub-D plug | In mounted state
- Ambient temperature
- -40 °C...80 °C
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5105627. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
