Name: Festo 5105632 Plug socket with cable SIM-M12-8GD-20-PU
Brand: Festo

Plug socket with cable SIM-M12-8GD-20-PU

The Festo part number 5105632 is an industrial component featuring a straight round M12x1 A-coded 8-pin socket for field device connection conforming to EN 61076-2-101, alongside an open-ended 8-wire cable on the control side. This shielded assembly supports an AC and DC operating voltage range of 0 V to 30 V, a current rating of 2 A at 40° C, and a surge resistance of 0.8 kV. It is constructed without a label holder and utilizes a rotatable screw-type lock mounting compatible with both rotatable and non-rotatable locking mechanisms. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5105632
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5105632.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101
Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

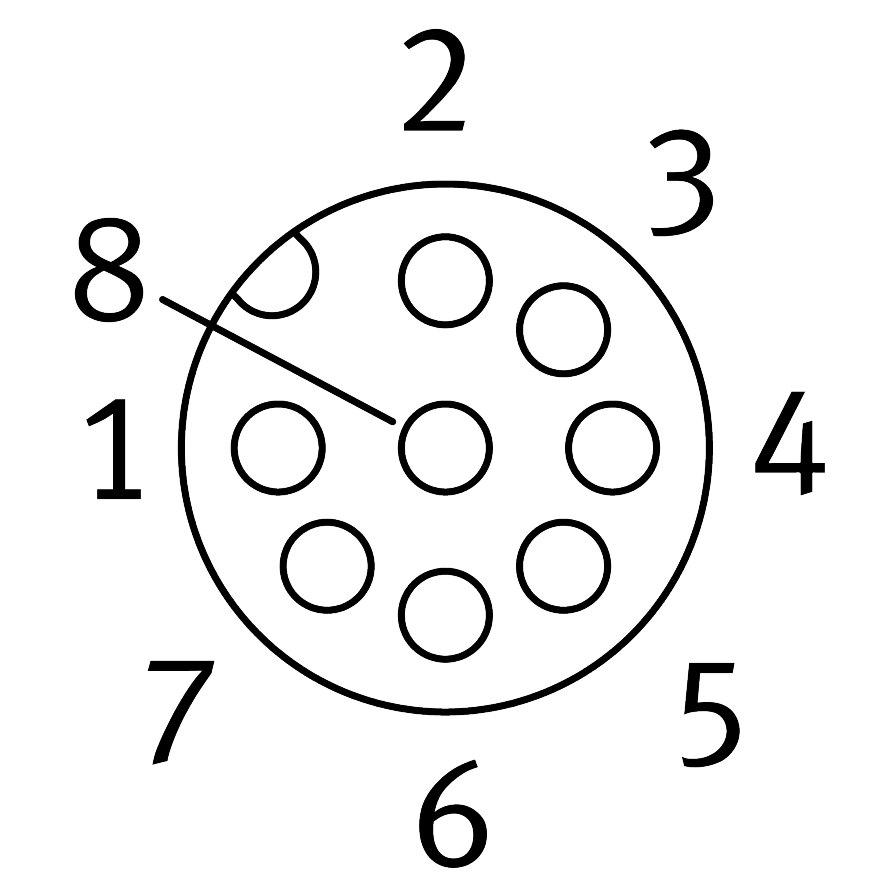

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 1, type of mounting: Screw-type lock | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 8
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...30 V
Current rating at 40° C: 2 A
Surge resistance: 0.8 kV
Shield: Yes
Cable length: 20 m
Cable characteristic: Standard
Bending radius, xed cable installation: 32 mm
Bending radius, exible cable installation: 66 mm
Cable diameter: 6.3 mm
Cable diameter tolerance: ± 0.2 mm
Cable design: 8 x 0.25 mm²
Nominal conductor cross section: 0.25 mm²

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 5105632. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
