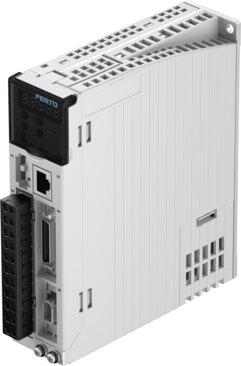

Name: Festo 5105641 Motor controller CMMB-AS-01
Brand: Festo

Motor controller CMMB-AS-01

The Festo 5105641 industrial component is designed for sub-base or screw-on mounting with a product weight of 740 g and features a 7-segment display. It operates on a single-phase nominal AC voltage of 230 V within an input voltage range of 200 V to 240 V at 50 Hz to 60 Hz, drawing a nominal current of 1.5 A with a maximum DC link voltage of 300 V and permissible voltage fluctuations of +/- 10%. Certified by c UL us - Listed (OL) with IP20 protection, it carries CE and UKCA markings per EMC, low voltage, and RoHS directives, alongside VDMA24364 Zone III LABS conformity, functioning within an ambient temperature range of 0 °C to 40 °C and storage temperatures from -10 °C to 70 °C at 5 to 95% relative air humidity and contamination level 2. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5105641
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5105641.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: On sub-base | Screwed on
Product weight: 740 g
Display: 7-segment display
Certication: c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Storage temperature: -10 °C...70 °C
Ambient temperature: 0 °C...40 °C
Relative air humidity: 5 - 95%
Degree of protection: IP20
Contamination level: 2
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Nominal operating voltage phases: Single-phase
Nominal operating voltage AC: 230 V
Permissible voltage uctuations: +/- 10%
Input voltage range AC: 200 V...240 V
Mains frequency: 50 Hz...60 Hz
Nominal current: 1.5 A
Max. DC link voltage: 300 V
Braking resistor: 300 Ohm
Braking resistor, external: 75 Ohm
Nominal voltage, logic supply DC: 24 V
Permissible range of logic voltage: ±10%
Max. current consumption for logic supply without clamping brake: 0.5 A
Output voltage range AC: 3x 0 - 240 V
Nominal output current: 1.5 A
Peak current per phase, eﬀective: 7 A
