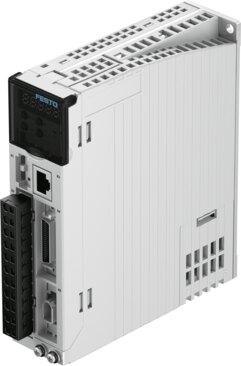

Reference imageConfirm configuration by manufacturer part number.
Festo
5105643
Motor controller CMMB-AS-04
The Festo 5105643 is an industrial component designed for mounting on a sub-base or via screw attachment, featuring a weight of 760 g and a 7-segment display. It operates on a single-phase 230 V AC nominal voltage with an input voltage range of 200 V to 240 V at 50 Hz to 60 Hz mains frequency, drawing a nominal current of 4.5 A and supporting a max DC link voltage of 300 V. The unit functions within an ambient temperature range of 0 °C to 40 °C, stores at -10 °C to 70 °C, accommodates 5% to 95% relative air humidity, and provides an IP20 degree of protection with contamination level 2. Certified as c UL us Listed (OL) with CE, UKCA, and RoHS compliance, it conforms to VDMA24364 Zone III LABS PWIS requirements. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5105643
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5105643.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- On sub-base | Screwed on
- Product weight
- 760 g
- Display
- 7-segment display
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Storage temperature
- -10 °C...70 °C
- Ambient temperature
- 0 °C...40 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP20
- Contamination level
- 2
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Nominal operating voltage phases
- Single-phase
- Nominal operating voltage AC
- 230 V
- Permissible voltage uctuations
- +/- 10%
- Input voltage range AC
- 200 V...240 V
- Mains frequency
- 50 Hz...60 Hz
- Nominal current
- 4.5 A
- Max. DC link voltage
- 300 V
- Braking resistor
- 300 Ohm
- Braking resistor, external
- 75 Ohm
- Nominal voltage, logic supply DC
- 24 V
- Permissible range of logic voltage
- ±10%
- Max. current consumption for logic supply without clamping brake
- 0.5 A
- Output voltage range AC
- 3x 0 - 240 V
- Nominal output current
- 4.5 A
- Peak current per phase, effective
- 15 A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5105643. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
