Name: Festo 5105644 Motor controller CMMB-AS-07
Brand: Festo

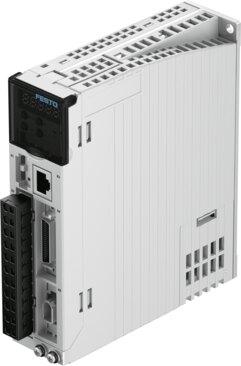

Motor controller CMMB-AS-07

The Festo part number 5105644 is an industrial component weighing 760 g with sub-base or screwed-on mounting options and an integrated 7-segment display. Operating on a single-phase 230 V AC nominal voltage with an input range of 200 V to 240 V AC at 50 Hz to 60 Hz, it handles a nominal current of 7 A and a maximum DC link voltage of 300 V, while tolerating permissible voltage fluctuations of +/- 10%. It features an IP20 degree of protection, contamination level 2, RoHS compliance, VDMA24364 Zone III LABS conformity, and functions within a storage temperature range of -10 °C to 70 °C, an ambient temperature range of 0 °C to 40 °C, and 5 to 95% relative air humidity. Certified as c UL us Listed (OL) and carrying CE and UKCA markings per applicable EU and UK directives for EMC, low voltage, and RoHS, this unit meets specific regulatory standards. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5105644
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5105644.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: On sub-base | Screwed on
Product weight: 760 g
Display: 7-segment display
Certication: c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Storage temperature: -10 °C...70 °C
Ambient temperature: 0 °C...40 °C
Relative air humidity: 5 - 95%
Degree of protection: IP20
Contamination level: 2
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Nominal operating voltage phases: Single-phase
Nominal operating voltage AC: 230 V
Permissible voltage uctuations: +/- 10%
Input voltage range AC: 200 V...240 V
Mains frequency: 50 Hz...60 Hz
Nominal current: 7 A
Max. DC link voltage: 300 V
Braking resistor: 300 Ohm
Braking resistor, external: 75 Ohm
Nominal voltage, logic supply DC: 24 V
Permissible range of logic voltage: ±10%
Max. current consumption for logic supply without clamping brake: 0.5 A
Output voltage range AC: 3x 0 - 240 V
Nominal output current: 7 A
Peak current per phase, eﬀective: 15 A
