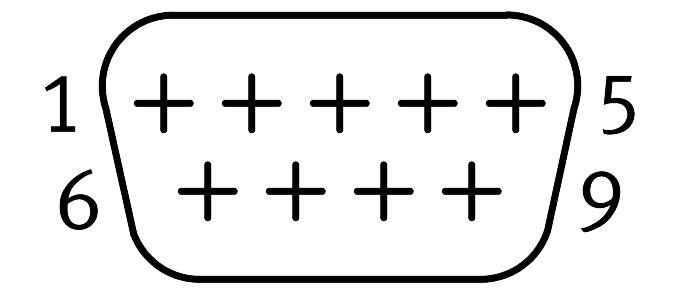

Reference imageConfirm configuration by manufacturer part number.
Festo
5105645
Programming cable NEBC-S1G9-K-1.5-N-R3G8
This Festo industrial component, part number 5105645, is a 1.5-meter cable featuring a straight Sub-D 9-pin socket with 8 occupied pins on the field device side and a straight RJ45 8-pin plug with 8 occupied pins on the control side. Both electrical connections feature a square design without a label holder. The unit operates within a DC and AC operating voltage range of 0 V to 30 V, with a nominal operating voltage of 5 V for both current types. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5105645
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5105645.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 9
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 5 V
- Operating voltage range AC
- 0 V...30 V
- Nominal operating voltage AC
- 5 V
- Cable length
- 1.5 m
- Cable characteristic
- Standard
- Degree of protection
- IP20
- Note on degree of protection
- In mounted state
- Ambient temperature
- -20 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Housing colour
- Black
