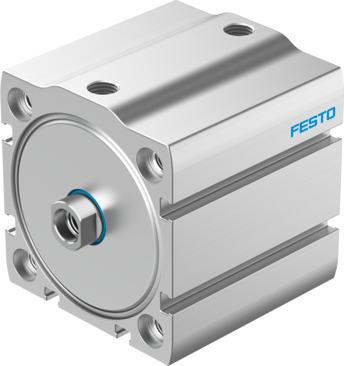

Reference imageConfirm configuration by manufacturer part number.
Festo
5132667
Compact cylinder ADN-S-63-25-I-P-A
The Festo 5132667 is a double-acting industrial component featuring a 63 mm piston diameter, a 25 mm stroke, and a piston rod at one end with an internal thread. It operates at pressures from 0.04 MPa to 1 MPa using compressed air complying with ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation. Designed with elastic cushioning rings at both ends and position sensing via proximity switch, this unit delivers a theoretical advancing force of 1870 N and a retracting force of 1750 N at 6 bar across an ambient temperature range of 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5132667
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5132667.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1 MPa | 0.4 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 1.3 J
- Theoretical force at 6 bar, retracting
- 1750 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 151 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 499 g
- Additional weight per 10 mm stroke
- 77 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy, anodized
- Material of dynamic seals
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5132667. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
