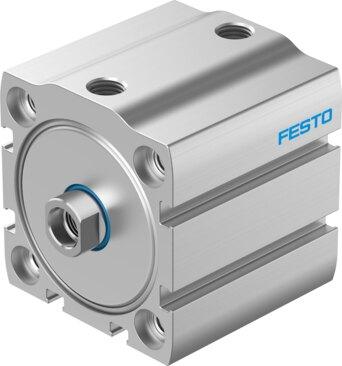

Name: Festo 5138190 Compact cylinder ADN-S-50-15-I-P-A
Brand: Festo

Compact cylinder ADN-S-50-15-I-P-A

The Festo 50 mm piston diameter industrial component delivers a 15 mm stroke via a double-acting mode of operation with a piston rod at one end featuring an internal thread. This unit operates within a pressure range of 0.04 MPa to 1 MPa using compressed air as per ISO 8573-1:2010 [7:4:4], featuring elastic cushioning rings at both ends and position sensing via proximity switch. It yields a theoretical force of 1178 N advancing and 1057 N retracting at 6 bar while accommodating an ambient temperature range of 0 °C to 80 °C and offering any mounting position. Submit part number 5138190, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 5138190
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 5138190.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 50 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: Internal thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.04 MPa...1 MPa | 0.4 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 1 J
Theoretical force at 6 bar, retracting: 1057 N
Theoretical force at 6 bar, advancing: 1178 N
Moving mass at 0 mm stroke: 104 g
Additional moving mass per 10 mm stroke: 16 g
Basic weight with 0 mm stroke: 324 g
Additional weight per 10 mm stroke: 63 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy, anodized
Material of dynamic seals: TPE-U(PU)
Housing material: Wrought aluminum alloy, anodized
