Festo
5162494

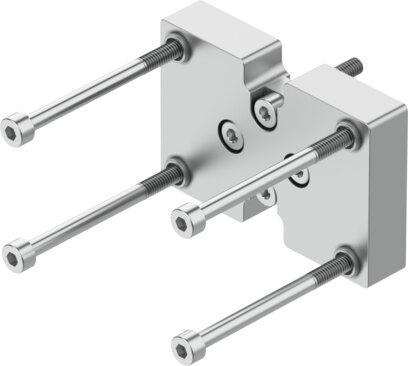

Adapter kit DHAA-G-E21-60-B8G-35
The Festo 5162494 is a 118 g industrial component featuring an anodized wrought aluminum alloy adapter plate, galvanized steel screws, and steel centering elements. It offers CRC 2 moderate corrosion stress resistance and VDMA24364-B2-L LABS conformity with RoHS compliant materials, and supports installation in any mounting position utilizing through-holes, screws, and a centering sleeve. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5162494
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5162494.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 118 g
- Type of mounting
- With through-hole and screw | With centering sleeve
- Note on materials
- RoHS compliant
- Adapter plate material
- Wrought aluminum alloy, anodized
- Material of screws
- Galvanized steel
- Material of centering elements
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5162494. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
